BANDSAW: UE-916A 9" 1PH (TAIWAN)
$6,500.00
BANDSAW: UE-250SSA 10" MITRE (TAIWAN)
$9,600.00
BANDSAW: UE-250A 10″ MANUAL (TAIWAN)
$5,100.00
* Control box situated at top of the bow controls blade speed, descent rate & coolant.
* Mitre cutting up to 45° using the vice.
* Quick action vice clamping device.
* Rugged fabricated steel construction.
* Easy blade change with adjustable tension.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides with large rule at the top for accuracy.
* Wire wheel cleans swarf off the blade while cutting.
* Made in Taiwan.
| Weight | 677 kg |
|---|---|
| Dimensions | 1.75 × 0.55 × 1.09 cm |
Description
| Description | Horizontal bandsaw |
|---|---|
| Model | UE250A |
| Capacity Round 90° (mm) | 250 |
| Capacity Rectangular 90° (mm) | 250 x 415 |
| Capacity Round 45° (mm) | 190 |
| Capacity Rectangular 45° (mm) | 250 x 190 |
| Capacity Round 60° (mm) | 180 |
| Capacity Rectangular 60° (mm) | 100 x 190 |
| Blade Speeds (no.) | 2 |
| Blade Speeds (m/min) | 29 & 85 |
| Blade Size L x H (mm) | 3300 x 27 |
| Motor (kW) | 1.5 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 677 |
| Volume (m³) | 1.0491 |
| Packing Size L x W x H (mm) | 1750 x 570 x 1090 |
Shipping & Delivery
Related products
BANDSAW: UE-916A 9″ 1PH (TAIWAN)
SKU:
BSH101657
* Control box situated at top of the bow controls blade speed, descent rate & coolant.
* Mitre cutting up to 45° using the vice.
* Quick action vice clamping device.
* Rugged fabricated steel construction.
* Easy blade change with adjustable tension.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides with large rule at the top for accuracy.
* Wire wheel cleans swarf off the blade while cutting.
* Made in Taiwan.
BANDSAW: UE-330A – MANUAL (TAIWAN)
SKU:
BSH101686
* Control box situated at top of the bow controls blade speed, descent rate & coolant.
* Mitre cutting up to 45° using the vice.
* Quick action vice clamping device.
* Rugged fabricated steel construction.
* Easy blade change with adjustable tension.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides with large rule at the top for accuracy.
* Wire wheel cleans swarf off the blade while cutting.
* Made in Taiwan.
BANDSAW: WS-20FAG FULLY AUTO SHUTTLE VICE (TAIWAN)
SKU:
BSH101690
* New upgraded Human Machine Interface Panel. Provides simple and easy operating syste.
* Advanced operating system with built in error indication. 3D machine error display on screen.
* Encoder controlled lenght setting for accurate positioning.
* Dual vice system i.e. Shuttle vice and Clamping vice.
* Blade speed is driven by Invertor to provde high efficency and variable speed.
* Equipped with hyddraulic blade tension provides extended blade life.
* Made in Taiwan.

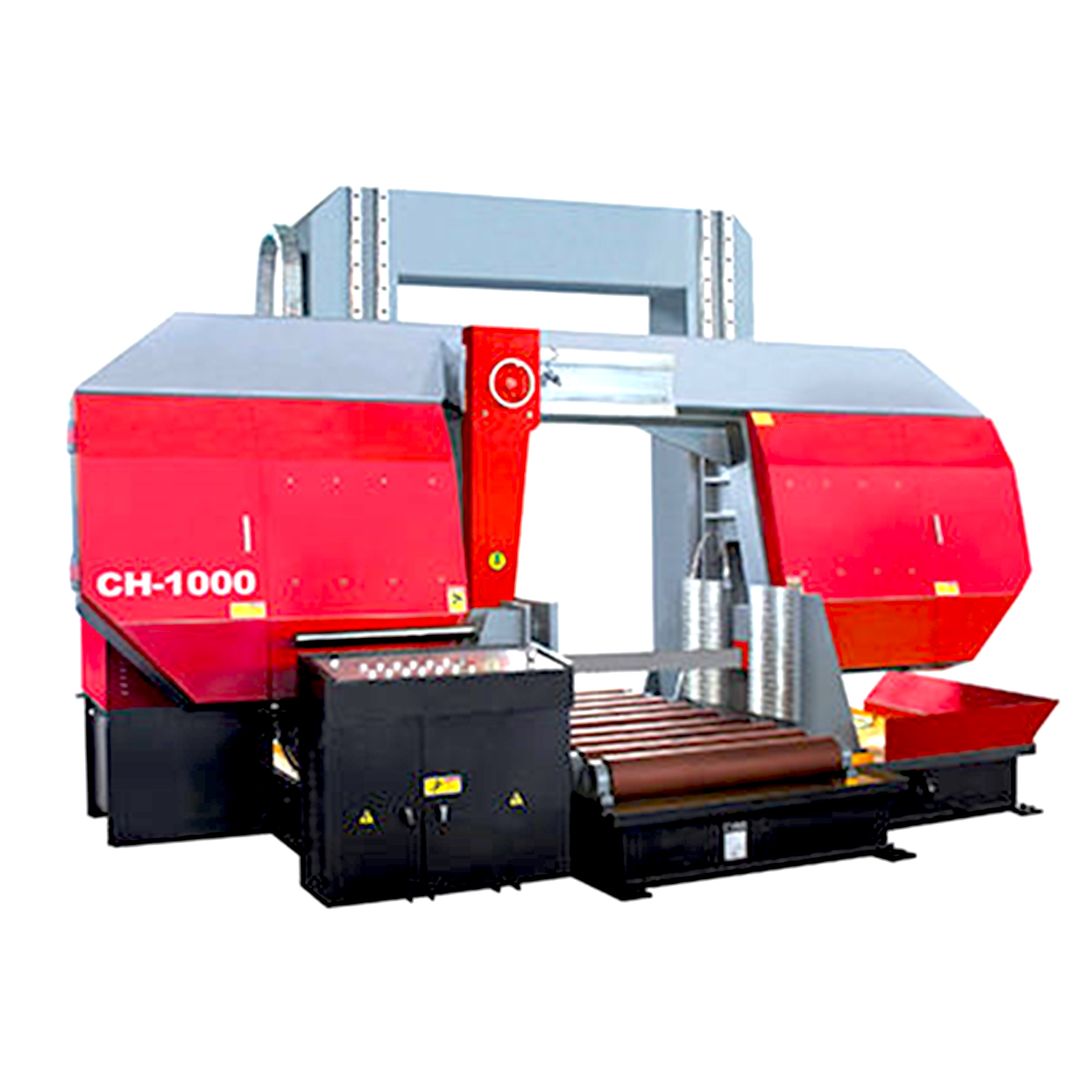

BANDSAW: CH-1000 SEMI- AUTO HORZ
SKU:
BSH102220
* This is a large twin column hydraulic bandsaw
* Robust twin column construction.
* Auto power off if blade breaks.
* Stroke limit switch.
* Auto return to height which is set by limit switch.
* Strong all steel welded frame for durability and long service.
* Hydraulic clamping
* Larger capacity cutting diameter - 1000 x 1000mm
