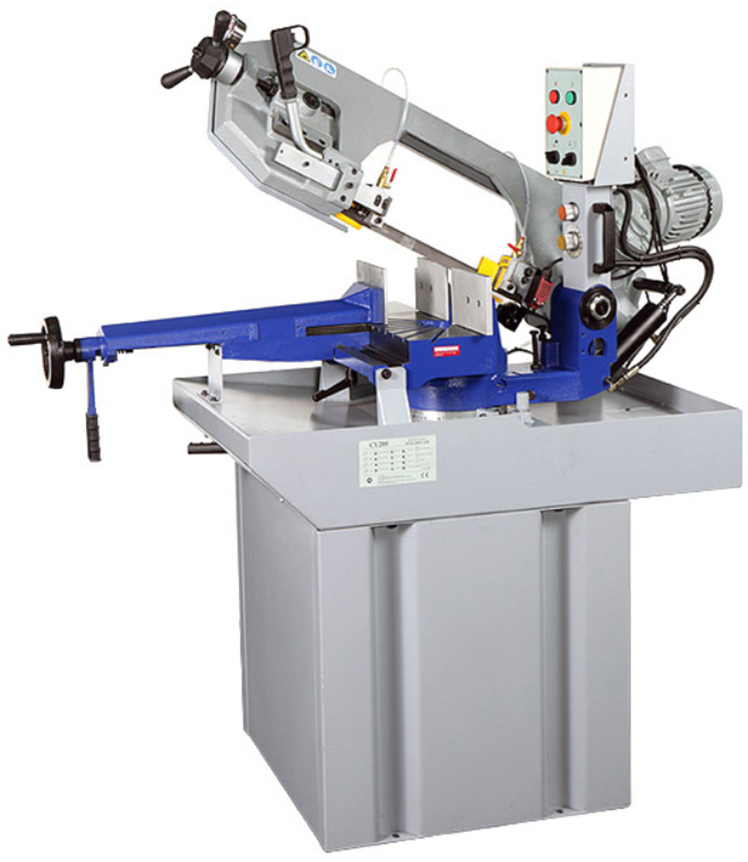

| Description | Euro type horizontal bandsaw |
|---|---|
| Model | CY300N |
| Capacity Round 90° (mm) | 255 |
| Capacity Rectangular 90° (mm) | 200 x 320 |
| Capacity Round 45° (mm) | 195 |
| Capacity Rectangular 45° (mm) | 195 x 195 |
| Blade Speeds (no.) | 1 |
| Blade Speeds (m/min) | 35 |
| Blade Size L x H (mm) | 2750 x 27 |
| Motor (kW) | 1.5 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 350 / 390 |
| Volume (m³) | 1.4653 |
| PACKING SIZE |
Description
SKU : BSH101262
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)
FEATURES:
* European style bandsaw.
* Contol panel located on the front of the machine.
* Fitted with quick action lock/release vice.
* Swivel head adjustment for scaled mitre cutting.
* Emergency cut out switch.
* Coolant pump for cutting effiency and longer blade life.
* Mounted on drip tray with stand assembly.
* Hydraulic cylinder to control down feed during the cutting process.
* Made in Taiwan.
| Weight | 390 kg |
|---|---|
| Dimensions | 1.73 × 0.77 × 1.1 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
BANDSAW: CY-350R 270MM 1PH (TAIWAN)
SKU:
BSH101270
* European style bandsaw.
* Round table.
* Contol panel located on the front of the machine.
* Fitted with quick action lock/release vice.
* Swivel head adjustment for scaled mitre cutting.
* Emergency cut out switch.
* Coolant pump for cutting effiency and longer blade life.
* Mounted on drip tray with stand assembly.
* Hydraulic cylinder to control down feed during the cutting process.
* Made in Taiwan.
BANDSAW: CY-135A 135MM 1PH (TAIWAN)
SKU:
BSH101322
* Small but quality workshop bandsaw.
* Quick action lock & release vice.
* Higher working height for convenience.
* Mitre cutting up to 45° with pre-set angles on the vice.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Adjustable length stop for repetitive cutting.
* Made in Taiwan.
BANDSAW: CY-280 DUAL MITRE 1PH (TAIWAN)
SKU:
BSH101351
* Heavy duty dual mitre bandsaw.
* Quick action lock & release vice, with unique sliding design.
* Higher working height for convenience.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Input support roller for long work pieces.
* Automatic blade breakage sensor.
* Easy blade changing and hydraulic tensioning adjustment.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Made in Taiwan.
BANDSAW: CY-300 DUAL MITRE 2 SPEED 3PH (TAIWAN)
SKU:
BSH101355
* Heavy duty dual mitre bandsaw with a two speed motor.
* Quick action lock & release vice, with unique sliding design.
* Higher working height for convenience.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Input support roller for long work pieces.
* Automatic blade breakage sensor.
* Easy blade changing and hydraulic tensioning adjustment.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Made in Taiwan.
BANDSAW: CY-355 DUAL MITRE SEMI-AUTO (TAIWAN)
SKU:
BSH101362
* Heavy duty, semi-automatic dual mitre bandsaw with two speed motor.
* Higher working height for convenience.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Automatic blade breakage sensor.
* Easy blade changing and hydraulic tensioning adjustment.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Made in Taiwan.
BANDSAW: BS-460G DUAL MITRE
SKU:
BSH101370
* Semi-automatic dual-mitre bandsaw with two speed motor.
* Comprehensive control panel.
* Full length hydraulic vice, with dovetail sliding design.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Fabricated steel construction.
* Adjustable pre-set bow height return.
* Adjustable tapered bearings prevent any backlash.
* Electro-mechanical blade tensioner with limit switch.
* Built in coolant system with adjustable flow control to both sides of the cut.
* Adjustable roller guides for accurate cutting.
* Made in Taiwan.
BANDSAW: UE-712SB 7″ MITRE (TAIWAN) BELT DRIVE
SKU:
BSH101435
* Blade speed is adjusted using a pulley drive system.
* Dual mitre cutting up to 45° using the swivel head and sliding vice, no need to move the material.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Adjustable length stop for repetitive cutting.
* Wire wheel cleans swarf off the blade while cutting.
* On castors for easy manoeuvrability.
* Made in Taiwan.
BANDSAW: UE-530DSA 21″ DUAL MITRE (TAIWAN)
SKU:
BSH101683
* Comprehensive control panel.
* Hydraulic vice, with unique sliding design and pressure gauge.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Variable speed with digital speed display.
* Hydraulic blade tensioner with automatic settings.
* Fabricated steel construction.
* Mechanical stroke counter.
* Precision swivel scale with magnified reader.
* Powered wire wheel cleans swarf off the blade while cutting.
* Built in coolant system with flow control to both sides of the cut.
* Adjustable roller guides for accurate cutting.
* Made in Taiwan.
