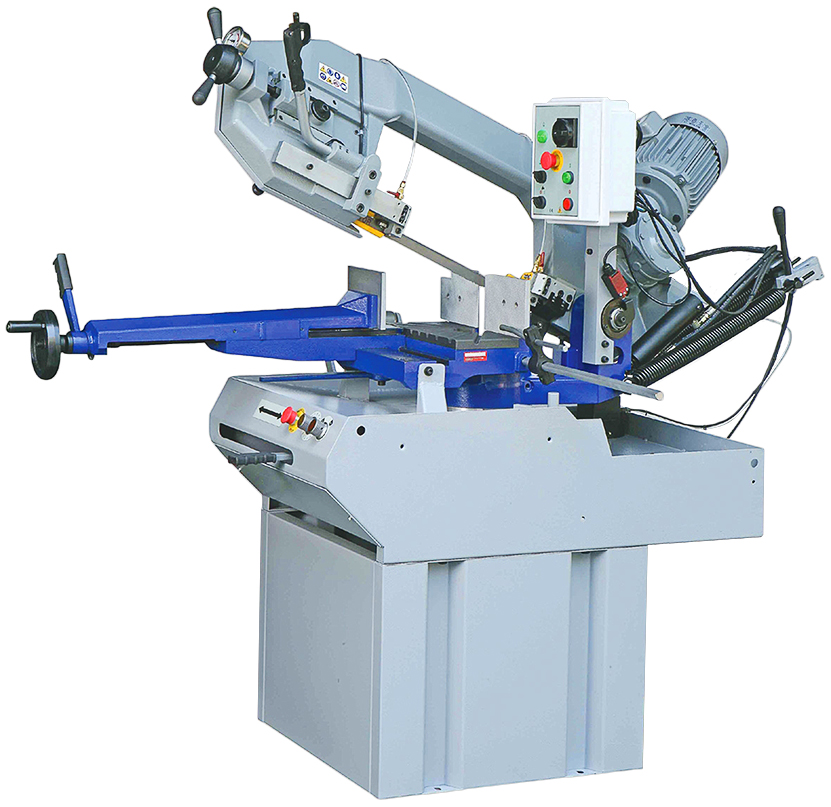

| Description | Euro type horizontal bandsaw |
|---|---|
| Model | CY-300 |
| Capacity Round 90° (mm) | 255 |
| Capacity Rectangular 90° (mm) | 320 x 250 |
| Capacity Round 45° (mm) | 195 |
| Capacity Rectangular 45° (mm) | 195 x 195 |
| Blade Speeds (no.) | 2 |
| Blade Speeds (m/min) | 35 & 70 |
| Blade Size L x H (mm) | 2,750 x 27 x 0.9 |
| Motor (kW) | 1.5 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 335 |
| Volume (m³) | 1.42 |
| Packing Size L x W x H (mm) | 1720 x 1130 x 730 |
Sold out
Description
SKU : BSH101355
Price per Unit
$7,912.72 (Exc GST)
$9,099.63 (Inc GST)
FEATURES:
* Heavy duty dual mitre bandsaw with a two speed motor.
* Quick action lock & release vice, with unique sliding design.
* Higher working height for convenience.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Input support roller for long work pieces.
* Automatic blade breakage sensor.
* Easy blade changing and hydraulic tensioning adjustment.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Made in Taiwan.
| Weight | 371 kg |
|---|---|
| Dimensions | 1.72 × 0.73 × 1.13 cm |
