BANDSAW: CY-280 DUAL MITRE 1PH (TAIWAN)
Excl. GST: $7,200.00
Incl. GST: $8,280.00
Incl. GST: $8,280.00
BANDSAW: CY-300 DUAL MITRE 2 SPEED 3PH (TAIWAN)
Excl. GST: $7,912.72
Incl. GST: $9,099.63
Incl. GST: $9,099.63

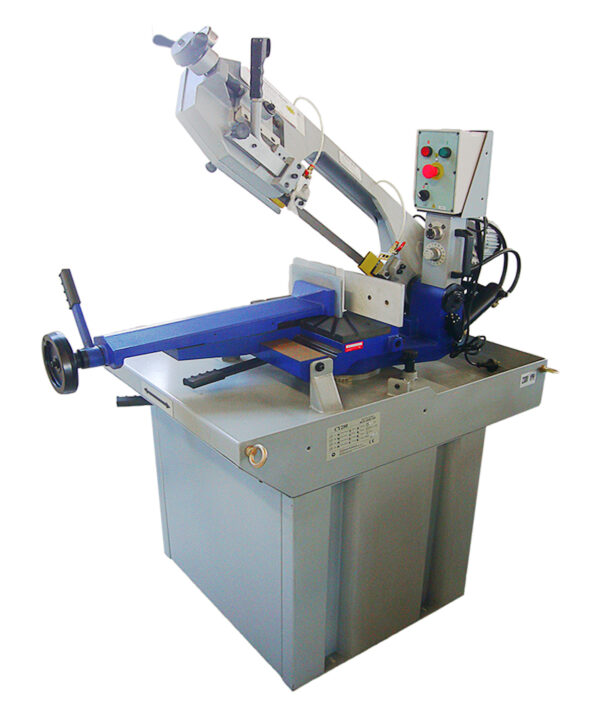

BANDSAW: CY-280 DUAL MITRE 2 SPEED 3PH (TAIWAN)
Excl. GST: $7,200.00
Incl. GST: $8,280.00
* Heavy duty dual mitre bandsaw with a two speed motor.
* Quick action lock & release vice, with unique sliding design.
* Higher working height for convenience.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Input support roller for long work pieces.
* Automatic blade breakage sensor.
* Easy blade changing and hydraulic tensioning adjustment.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Made in Taiwan.
| Weight | 310 kg |
|---|---|
| Dimensions | 1.46 × 0.73 × 1.06 cm |
In stock
Description
| Description | Euro type horizontal bandsaw |
|---|---|
| Model | CY-280 |
| Capacity Round 90° (mm) | 225 |
| Capacity Rectangular 90° (mm) | 245 x 150 |
| Capacity Round 45° (mm) | 150 |
| Capacity Rectangular 45° (mm) | 215 x 145 |
| Blade Speeds (no.) | 2 |
| Blade Speeds (m/min) | 45 / 90 |
| Blade Size L x H (mm) | 2,480 x 27 |
| Motor (kW) | 1.1 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 295 / 310 |
| Volume (m³) | 1.1297 |
| Packing Size L x W x H (mm) | 1460 x 730 x 1060 |
Shipping & Delivery
Related products
BANDSAW : G-5027 DUAL MITRE
SKU:
BSH101200
* Heavy duty semi-automatic dual mitre saw.
* Control box for blade speed, descent rate & coolant.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Trigger type handle.
* Rugged fabricated steel construction.
* Easy blade change with adjustable tension.
* Built in coolant system with adjustable flow control to both sides of the cut.
* Adjustable roller guides for accurate cutting.
* Wire wheel cleans swarf off the blade while cutting.
* Made in Taiwan.
BANDSAW: CY-125 125MM 1PH (TAIWAN)
SKU:
BSH101318
BANDSAW: CY-275 225MM 2 SPEED 3PH (TAIWAN)
SKU:
BSH101350
* Quality bandsaw with a heavy duty gear drive system and two speed motor.
* Quick action lock & release vice.
* Higher working height for convenience.
* Mitre cutting up to 45° with pre-set angles on the vice.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Adjustable length stop for repetitive cutting.
* Made in Taiwan.
BANDSAW: CY-355 DUAL MITRE SEMI-AUTO (TAIWAN)
SKU:
BSH101362
* Heavy duty, semi-automatic dual mitre bandsaw with two speed motor.
* Higher working height for convenience.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Automatic blade breakage sensor.
* Easy blade changing and hydraulic tensioning adjustment.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Made in Taiwan.
BANDSAW: CY-355A DUAL MITRE MANUAL (TAIWAN)
SKU:
BSH101363
* Heavy duty dual mitre bandsaw with two speed motor.
* Higher working height for convenience.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Automatic blade breakage sensor.
* Easy blade changing and hydraulic tensioning adjustment.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Made in Taiwan.
BANDSAW: BMT-260SL 227M MITRE (TAIWAN) (Swivel)
SKU:
BSH101388
* Quick action lock & release vice.
* Higher working height for convenience.
* Mitre cutting up to 45° with pre-set angles on the vice.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Adjustable length stop for repetitive cutting.
* Made in Taiwan.
BANDSAW: UE-712SB 7″ MITRE (TAIWAN) BELT DRIVE (Swivel)
SKU:
BSH101435
* Blade speed is adjusted using a pulley drive system.
* Dual mitre cutting up to 45° using the swivel head and sliding vice, no need to move the material.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Adjustable length stop for repetitive cutting.
* Wire wheel cleans swarf off the blade while cutting.
* On castors for easy manoeuvrability.
* Made in Taiwan.
BANDSAW: UE-250SSA 10″ MITRE (TAIWAN)
SKU:
BSH101674
* Quality semi-automatic bandsaw.
* Control box on top of bow for descent rate & coolant.
* Mitre cut up to 45° with a swivel head and quick release vice.
* Rugged steel construction.
* Easy blade change with adjustable tension.
* Built in coolant system with flow control to both sides of the cut.
* Variable speed drive using stepless pulley and adjustment knob.
* Heavy duty guide frame with measuring scale.
* Adjustable roller guides for accurate cutting.
* Wire wheel cleans swarf off the blade while cutting.
* Made in Taiwan.
