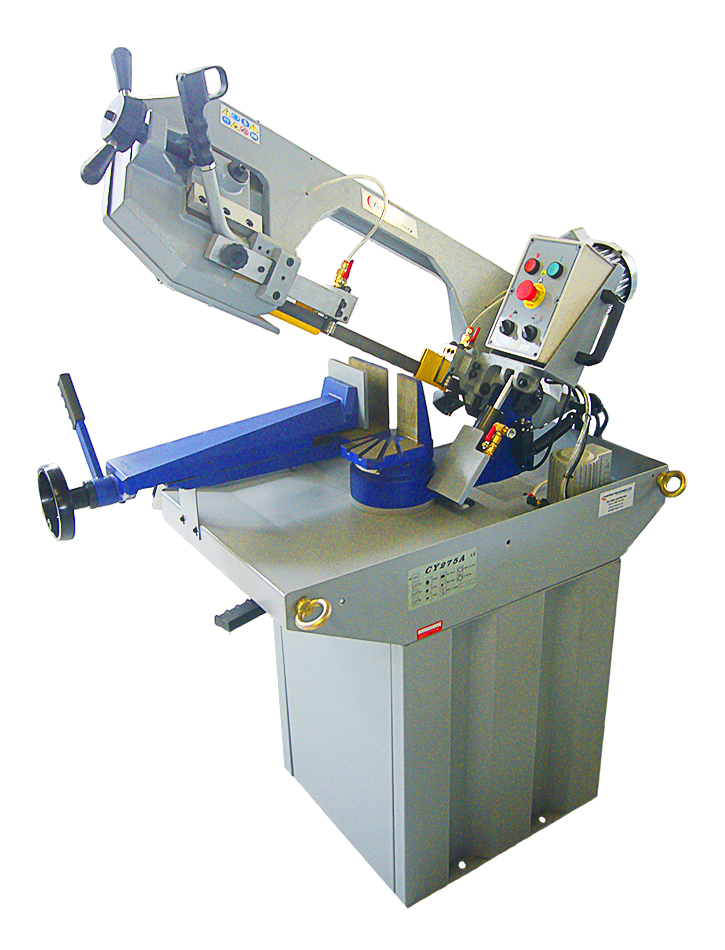

| Description | Euro type horizontal bandsaw |
|---|---|
| Model | CY275 |
| Capacity Round 90° (mm) | 225 |
| Capacity Rectangular 90° (mm) | 245 x 150 |
| Capacity Round 45° (mm) | 160 |
| Capacity Rectangular 45° (mm) | 175 x 125 |
| Blade Speeds (no.) | 2 |
| Blade Speeds (m/min) | 45 & 90 |
| Blade Size L x H (mm) | 2,480 x 27 |
| Motor (kW) | 1.1 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 185 / 200 |
| Volume (m³) | 0.7099 |
| Packing Size L x W x H (mm) | 1360 x 580 x 900 |
Description
SKU : BSH101350
Price per Unit
$4,900.00 (Exc GST)
$5,635.00 (Inc GST)
FEATURES:
* Quality bandsaw with a heavy duty gear drive system and two speed motor.
* Quick action lock & release vice.
* Higher working height for convenience.
* Mitre cutting up to 45° with pre-set angles on the vice.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Adjustable length stop for repetitive cutting.
* Made in Taiwan.
| Weight | 185 kg |
|---|---|
| Dimensions | 1.36 × 0.58 × 0.9 cm |
