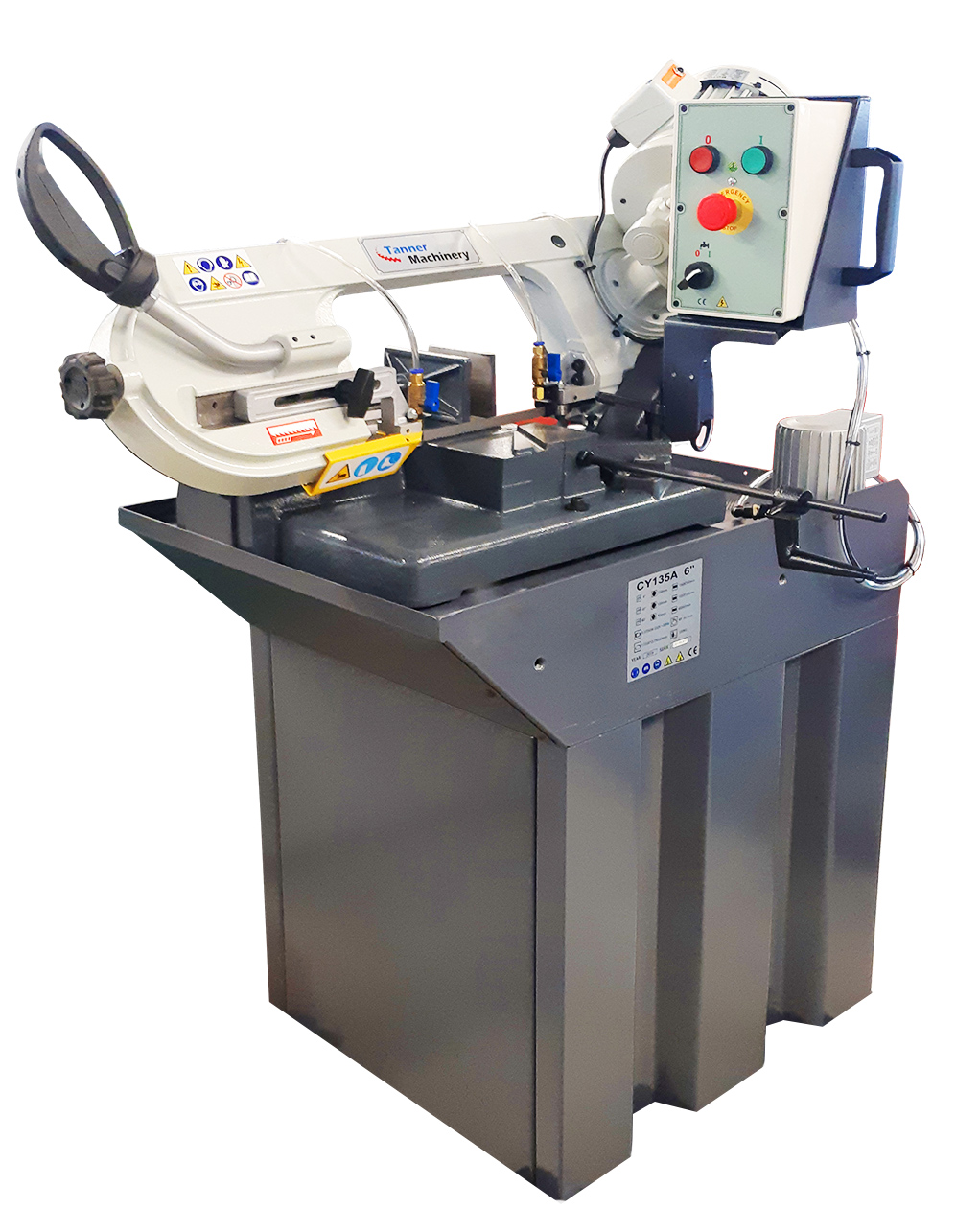

| Description | Euro type horizontal bandsaw |
|---|---|
| Model | CY135 |
| Capacity Round 90° (mm) | 170 |
| Capacity Rectangular 90° (mm) | 150 x 150 |
| Capacity Round 45° (mm) | 100 |
| Capacity Rectangular 45° (mm) | 130 x 100 |
| Blade Speeds (no.) | 1 |
| Blade Speeds (m/min) | 65 |
| Blade Size L x H (mm) | 1,735 x 13 |
| Motor (kW) | 0.375 |
| Voltage (V) | 240 |
| Weight Nett / Gross (kg) | 100 / 112 |
| Volume (m³) | 0.336m³ |
| Packing Size L x W x H (mm) | 1,160 x 580 x 750 |
Description
SKU : BSH101322
Price per Unit
$1,375.00 (Exc GST)
$1,581.25 (Inc GST)
FEATURES:
* Small but quality workshop bandsaw.
* Quick action lock & release vice.
* Higher working height for convenience.
* Mitre cutting up to 45° with pre-set angles on the vice.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Adjustable length stop for repetitive cutting.
* Made in Taiwan.
| Weight | 112 kg |
|---|---|
| Dimensions | 1.14 × 0.8 × 0.75 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
