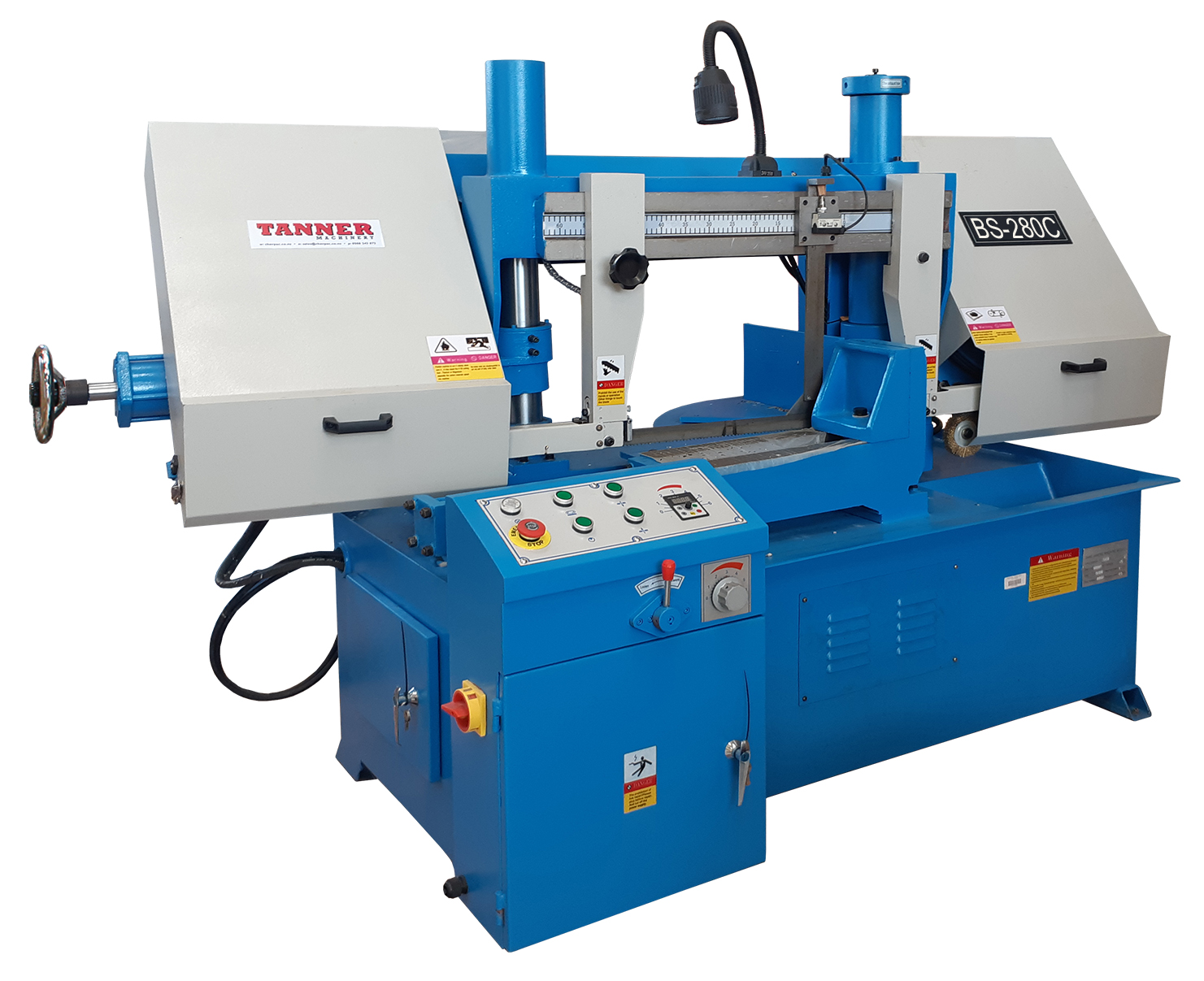

| Description | Semi-automatic mitre bandsaw |
|---|---|
| MODEL | BS-280C |
| Capacity Round 90° (mm) | 280 |
| Capacity Rectangular 90° (mm) | 320 x 280 |
| Capacity Round 45° (mm) | 200 |
| Capacity Rectangular 45° (mm) | 280 x 240 |
| Blade Speeds (no.) | Variable |
| Blade Speeds (m/min) | 27 – 70 |
| Blade Size L x H (mm) | 3,505 x 27 |
| Motor (kw) | 2.2 |
| Voltage (V) | 415 |
| Weight (kg) | 860 |
| Volume (m³) | 3.99 |
| PACKING SIZE L x W x H | 1900 x 1400 x 1500mm |
Description
SKU : BSH102200
Price per Unit
$8,900.00 (Exc GST)
$10,235.00 (Inc GST)
FEATURES:
* This adaptable swivel head bandsaw can swivel up to 45° and 30°.
* Robust twin column construction.
* Auto power off if blade breaks.
* Stroke limit switch.
* Auto return to height which is set by limit switch.
* Strong all steel welded frame for durability and long service.
* Comes with adjustable roller stand.
| Weight | 860 kg |
|---|---|
| Dimensions | 1.9 × 1.4 × 1.5 cm |
