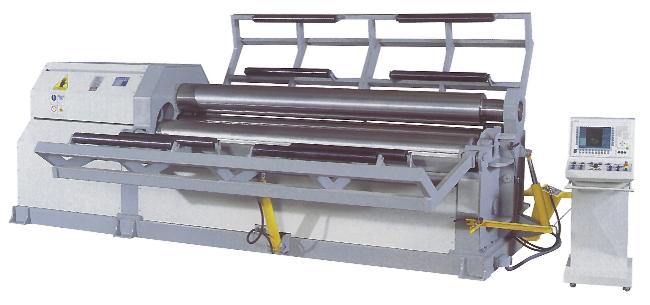

AKYAPAK: SLIP ROLLS 3100MM X 6MM 4 ROLLS
$0.00
* 4 Roller Plate bending machine
* Precise pinching of plate between top and bottom rolls.
* Legth of flat ends minimised.
* Cone rolling device
* Induction hardened rolls
* Fully welded steel (St -52 frame)
* Dual bending speed
* Hydraulic open and close operated from control panel
* Top and Bottom (central rolls) driven by hydraulic motor and planetary gear reducer
Description
| DESCRIPTION | Slip Rolls AHS30/04 |
|---|---|
| FORM WIDTH | 3100mm |
| CAPICITY MILD STEEL | 6.0mm |
| PRE BENDING | 4.0 mm |
| TOP ROLL DIAMETER | 210mm |
| BOTTOM ROLL DIAMETER | 190mm |
| SIDE ROLL DIAMETER | 170 mm |
| MINIMUM DIAMETER | 3 X Top Roll Diameter |
| MAIN MOTOR | 7.5Kw |
| SIZE (L X W X H ) | 5200 X 1300 X 1400mm |
| WEIGHT NETT/GROSS | 5400 Kg |
| VOLUME | 9,464cm |
