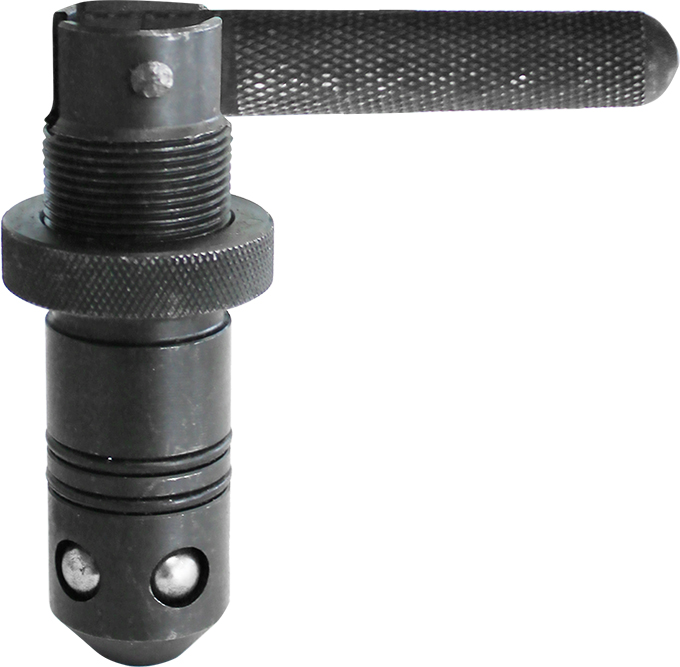

ADJUSTABLE LOCKING BOLT 50MM X ø28
$48.00
* Ball lock is an ideal fitting for connecting parts on welding equipment, using the
connection with different materials and different thickness parts *
* QSP28060 effective clamping distance is 45-55mm *
* QSP28085 effective clamping distance is 70-80mm *
* The O-ring on the positioning shaft acts as a dust-proof, fastening and positioning
function.
* The movement of the steel ball from the inside to the outside makes the locking
force gradually stronger *
| Weight | 0.528 kg |
|---|---|
| Dimensions | 0.086 × 0.028 × 0.028 cm |
In stock
